Product Overview

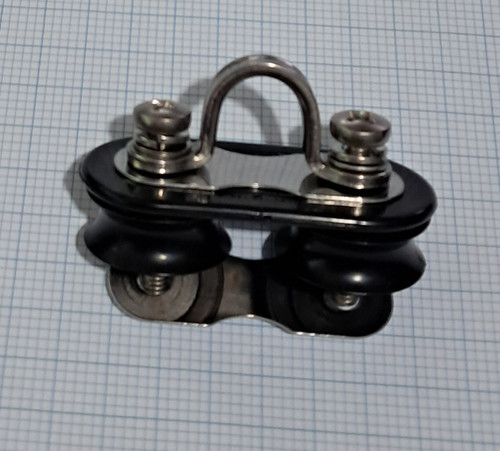

Self-contained sheaves are designed for sailors to use in custom applications. Two 160 sheaves make up the 161 dual-sheave universal lead. Use this sheave to divert a line that must turn in either direction.
Sheaves are 38mm apart at the centreline for the bolt holes.
The sheaves are Delrin® with Delrin® ball bearings. They are scored for rope.
| Sheave Ø (mm) | 29 mm |
| Width (mm) | 22 mm |
| Weight (g) | 28 g |
| Maximum line Ø (mm) | 8 mm |
| Maximum working load (kg) | 136 kg |
| Center pin Ø (mm) | 6.27 mm |
